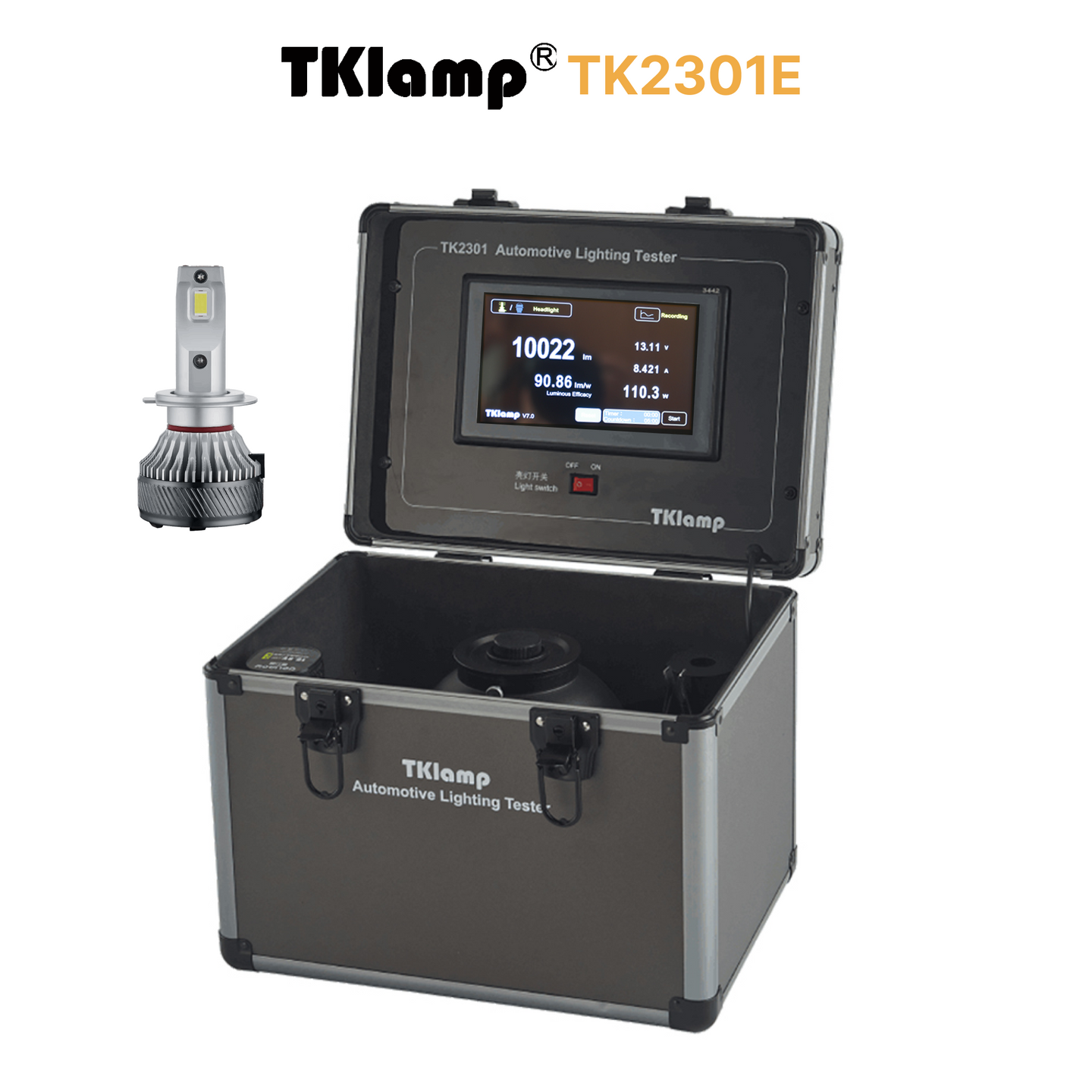

TK2301E Automotive Light Integrating Sphere Tester (150W)

The TK2301E Automotive Lighting Tester is the industry's first compact integrating sphere tester engineered specifically for comprehensive automotive lamp testing.

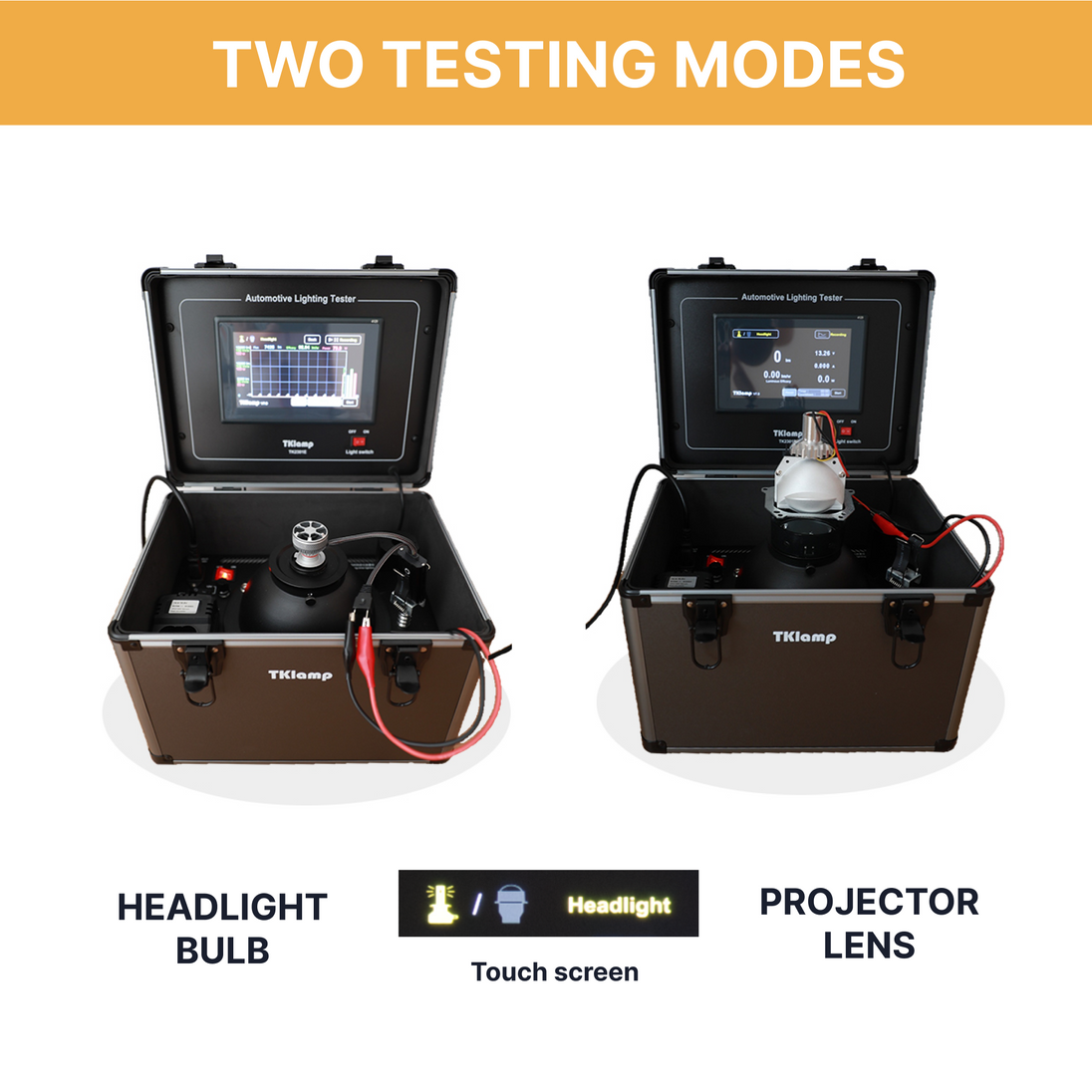

Universal Automotive Compatibility: Optimized for all lighting technologies including LED, HID, halogen, and projector lens systems.

Comprehensive Measurement Capabilities:

• Luminous Output: Up to 13,000 lumens measurement range
• Power Consumption: Up to 150W electrical measurement
• Luminous Efficacy: Real-time efficiency calculation (lumen/watt ratio)
• Electrical Parameters: Voltage and current monitoring

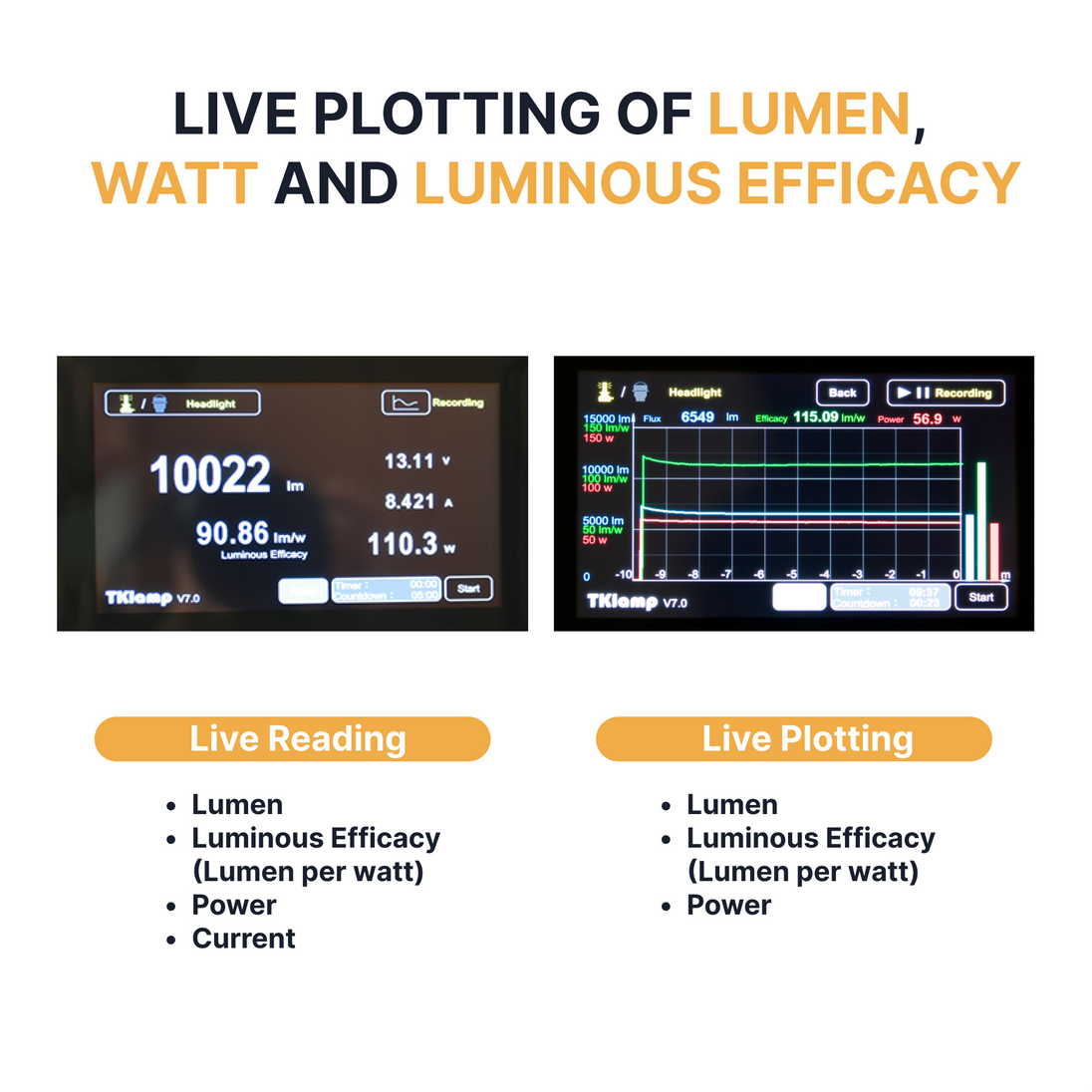

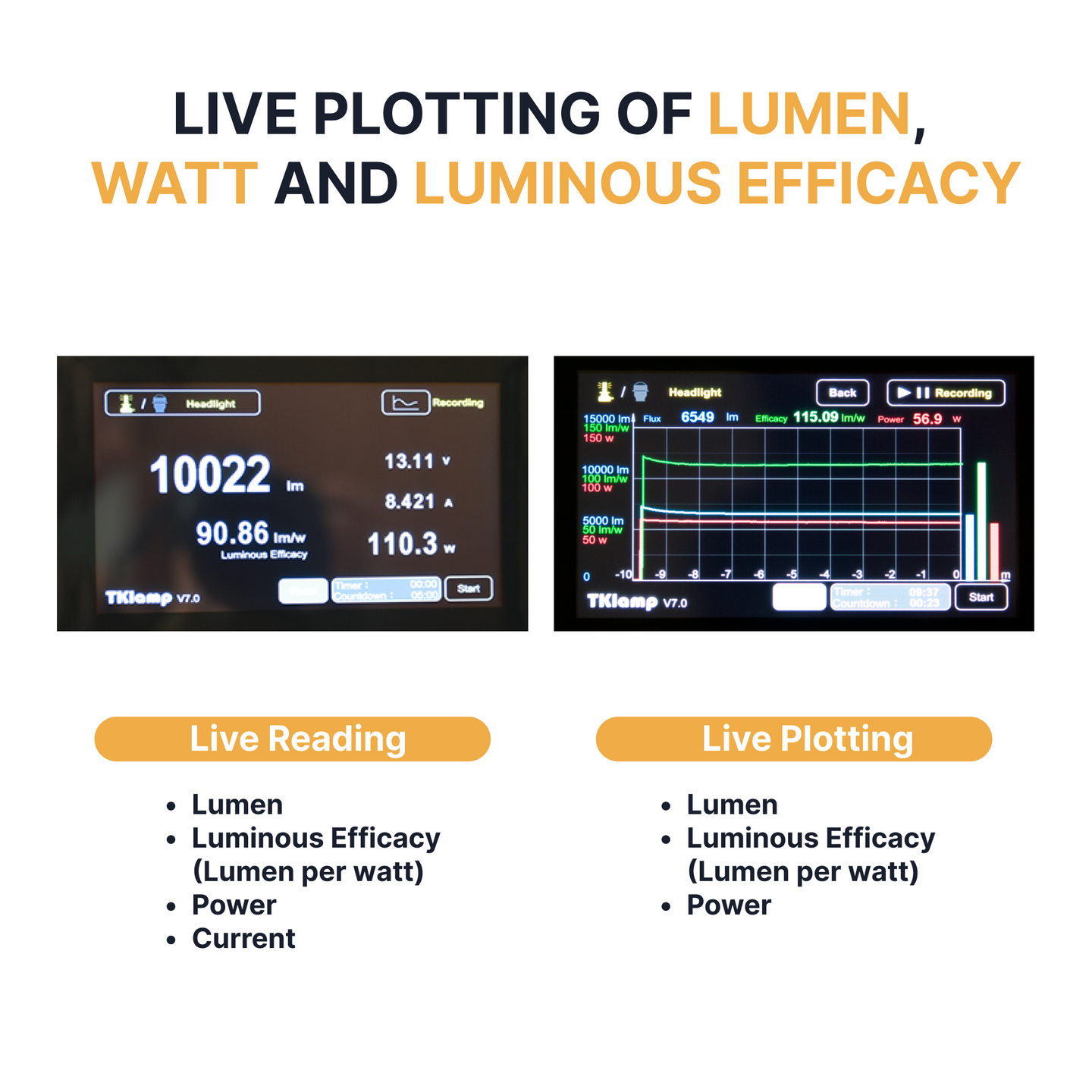

• Dynamic Analysis: Live plotting of lumens and watts over time for performance trending
• Built-in Timer: Automated measurement intervals for consistent testing

Features:

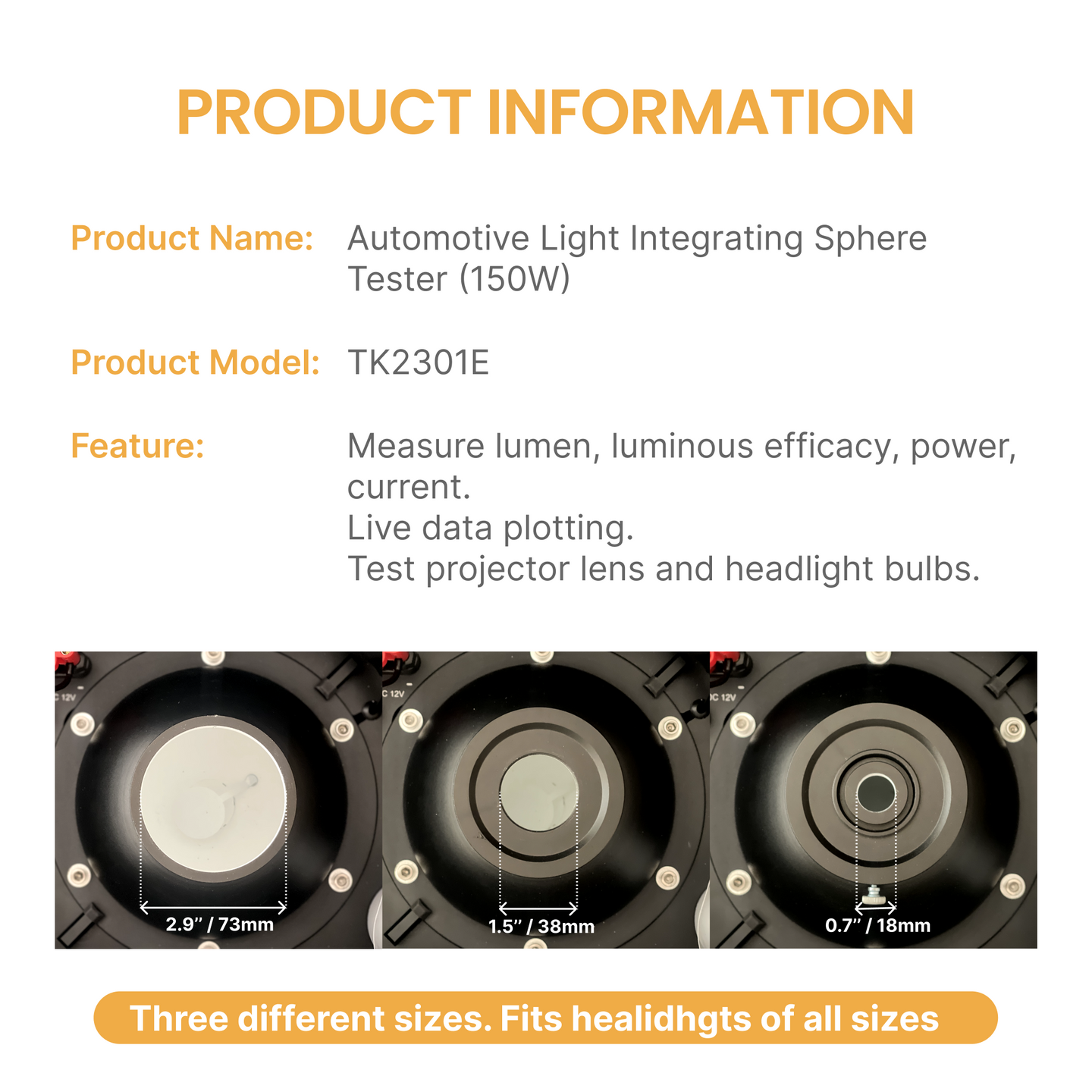

• Multiple Sphere Apertures: 0.7", 1.5", and 2.9" (1.8 cm, 3.8 cm, 7.4 cm) lid sizes accommodate various lamp configurations
• High-Speed Sampling: 1-second sample rate for detailed performance analysis

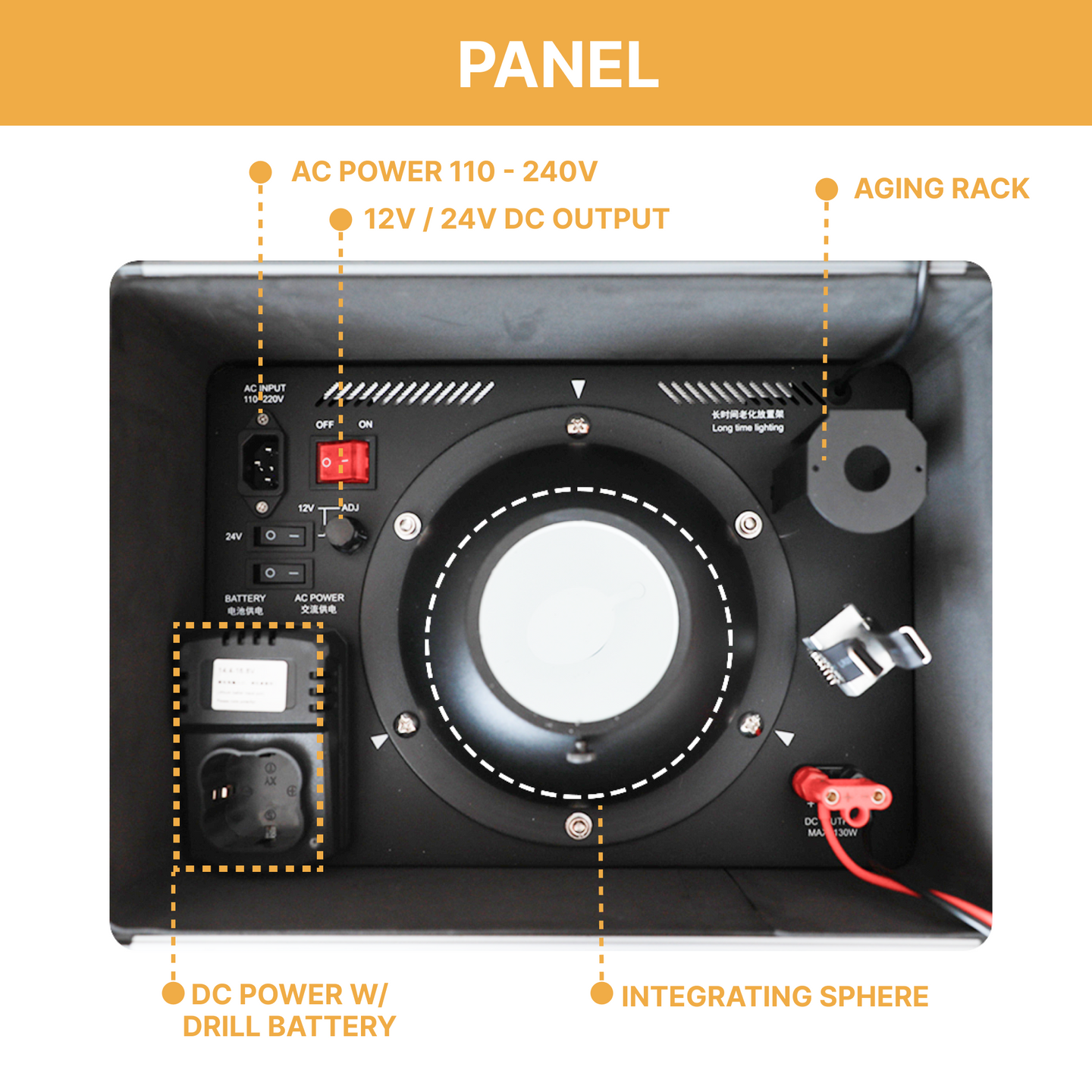

• Integrated Power Supply: Built-in AC to 12V/24V DC converter eliminates external power requirements
• Protective Design: Sealed sphere system prevents damage and ensures measurement accuracy

Technical Specifications:

• Dimensions: 15" L × 12" W × 13" H (38.1 × 30.5 × 33.0 cm)
• Weight: 15.5 lbs (7.0 kg)
• Sample Rate: 1-second intervals
• Power Supply: Universal AC input with 12V/24V DC output
• Warranty: 1-Year Limited Warranty with manufacturer support
• Connectivity: Auto-selecting plug type based on delivery location

Professional Applications:

• Comparing headlights.

• Quality control for automotive lighting

• Retrofit lighting performance analysis

TK2301E vs TK2501 Comparison:

https://tklamp.co/pages/compare-products
